Flat Roof Access Hatches

Lamilux Flat Roof Access Hatch Comfort Swing

Winner of the German Design Award and multiple industry accolades, the LAMILUX Flat Roof Access Hatch Comfort Swing brings generous daylight and elegant functionality to the roof .

Available in large sizes of 100 x300 cm and 100 x 350 cm, its hydraulic lift opens the glazed element smoothly to 84° in just 25 seconds, while the clever mechanism preserves space and offers a clean, minimalist aesthetic.

The inclined upstand and flat frame-to-glass transition ensure clear views and lasting visual appeal. Fully pre-assembled—including leaf, opener and insulated upstand—it arrives in any RAL colour and opens to the left or right, as specified. Thermal-bridge-free construction and high-performance glazing reduce energy loss and condensation.

Built-in safety features such as emergency stop sensors, manual override and fall-through protection make the LAMILUX Flat Roof Access Hatch Comfort Swing a secure and refined daylight solution

Safety

• Emergency stop function during closing by light barrier
• Closing and opening of the element possible via optional key switch
• Can be opened or closed during a power failure by manual operation with a hand lever
• Compliance with DIN 18234 without additional measures (prevention of fire expansion on the flat roof)
• Fall-through proof according to DIN 18008-6
• As a standard: Outer pane TSG, inner pane LSG
• Resistance to external fire exposure from flying sparks and radiant heat with classification Broof(t1) according to DIN EN 13501-5

Energy Efficiency

• Complete construction without thermal bridges
• Completely thermally insulated upstand
• Can be equipped with the highest quality functional glass
• Minimized risk of condensation

Design & comfort

• Winner of the German Design Award 2020 in the Category Special Mention
• Awarded with the Readers' Choice Award 2021 in the category Building Envelope Windows & Doors
• Generous daylight incidence

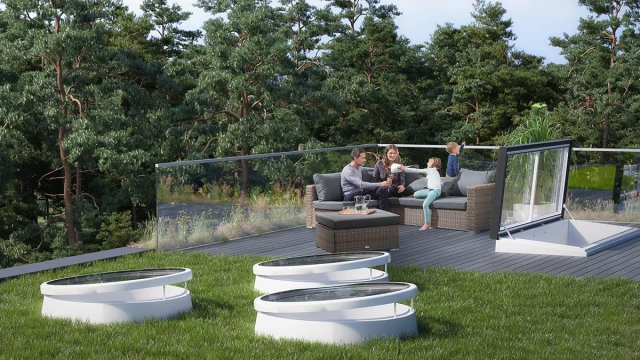

• Convenient access to the roof terrace via stairs (on-site)
• Flat roof access hatch opens 84° in approx. 25 seconds
• Folding mechanism provides more space on the roof terrace
• Self-cleaning due to inclined upstand
• Top element and flat transition from frame to glazing
• Stepless opening by hydraulic cylinder
• Variety of colours according to RAL card (edging profiles and reveal area)
• Leaf system, motor opener and top element are completely pre-assembled at the factory
• Opening side DIN left or DIN right selectable when ordering

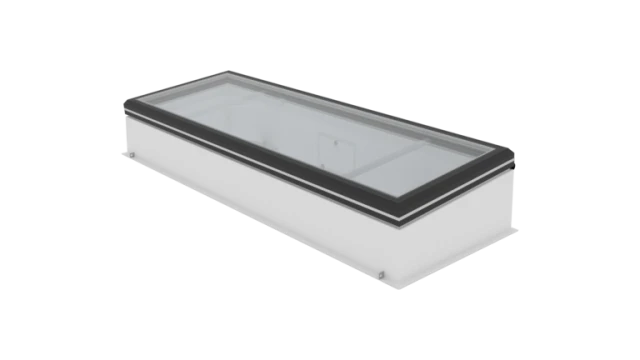

Lamilux Flat Roof Access Hatch Service FE

The LAMILUX Flat Roof Access Hatch Service FE provides safe and convenient access to technical flat roofs used for maintenance, photovoltaic systems, green roofing or ventilation equipment.

Available in generous sizes of 90 × 250 cm or 90 × 300 cm, it creates a spacious passage in combination with an on-site straight staircase. The glazed element opens smoothly up to 80° within approximately 60 seconds, while the integrated battery system ensures reliable operation even during a power failure.

A 5° inclined upstand supports efficient water drainage and helps reduce soiling. Its thermally broken aluminium construction, continuous insulation and double sealing system provide strong thermal performance and weather resistance.

A wide choice of heat-insulating and solar-control glazing allows the access hatch to be adapted to different building requirements.

 Fall-through protection in the closed position and tested safety functions ensure secure use on industrial, residential and public buildings.

Safety

• Driving rain tightness in accordance with DIN EN 1027 Class E
• Complies with the Machinery Directive in accordance with CE
• Resistance to wind load in accordance with DIN EN 12211 Class C5
• Fall-through safety in the closed position in accordance with DIN 18008-6
• Air permeability in accordance with DIN EN 1026 Class 4
• Complies with DIN EN 12978 “Doors and gates – Safety devices for power-operated doors and gates”

Energy Efficiency

• Thermally broken, high-strength aluminium composite system
• Continuously insulated core composite Zone
• Peripheral double sealing system

Design

• Generous dimensions: 90 × 250 cm or 90 × 300 cm
• High-quality design for maximum daylight Ingress
• Top section in traffic white inside and out, optionally anthracite on the outside
• 5° inclination for reliable water drainage and reduced soiling
• Continuously adjustable opening up to 80° within 60 seconds
• Opening via two electric drives or battery pack – also during power failures

Application

• Secure access to technically used flat Roofs
• Roof access hatch for maintenance on roofs with green roofing, photovoltaic systems and ventilation technology
• Spacious roof access in combination with an on-site straight staircase
• Flexible use on industrial, residential and public Buildings
• Various glazing options for every application
