LAMILUX Modular Glass Skylight MS78

The best of both worlds

Modular Glass Skylight by LAMILUX

LAMILUX Modular Glass Skylight MS78

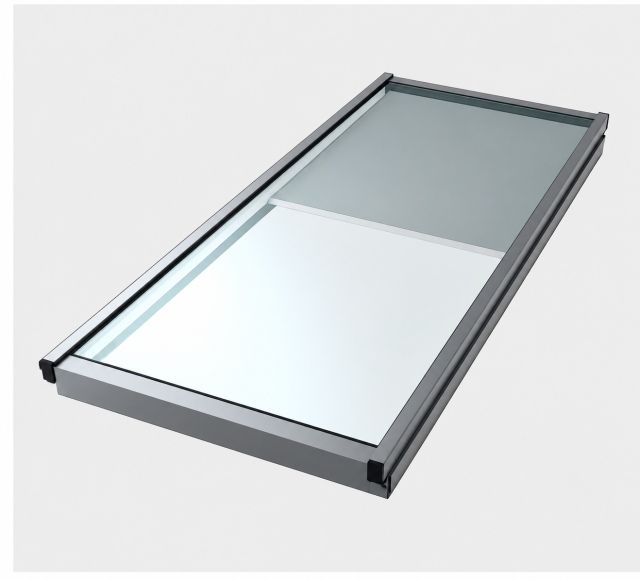

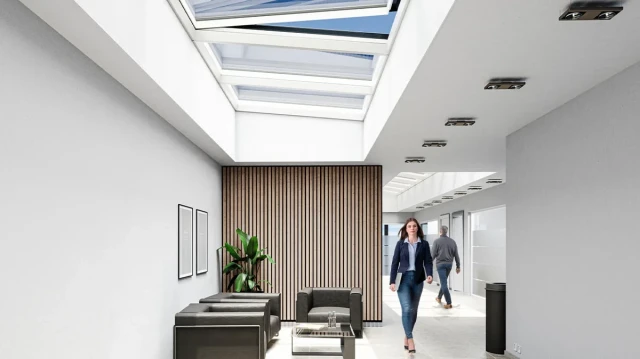

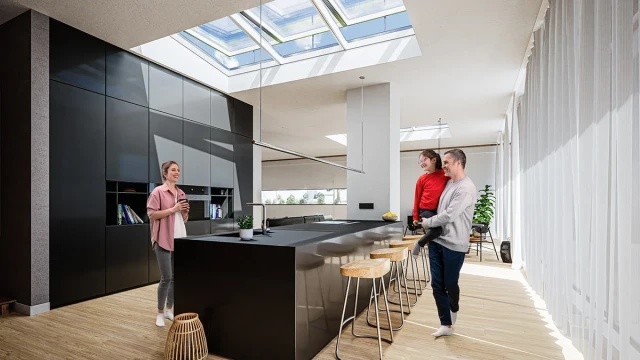

The LAMILUX Modular Glass Skylight MS78 combines the advantages of prefabricated skylights with the flexibility of a large-area glass roof system. Module sizes of up to 130 Ă— 300 cm create generous, glazed surfaces and bring abundant natural daylight into the building.

Fixed elements and ventilation vents share a uniform appearance, while concealed drives preserve the clean interior design. The number and position of the opening vents can be freely configured—even directly next to one another—creating maximum ventilation areas and allowing the fresh-air supply to be tailored to the building’s needs.

Installed at inclinations between 5° and 30°, the level transition between the glazing and frame supports efficient water drainage and helps prevent dirty edges. Designed for exceptionally fast and straightforward installation, the highly prefabricated modules can be mounted entirely from the roof side and connected directly to load-bearing surfaces made of concrete, steel or wood. This significantly speeds up the workflow and simplifies the overall construction process.

Double or triple glazing and optional sun and glare protection create a comfortable indoor environment and make the system a versatile solution for individual architectural concepts.

The LAMILUX Modular Glass Skylight MS78 is available in one colour combination: RAL 7016 (Anthracite Grey) externally and RAL 9016 (Traffic White) internally.

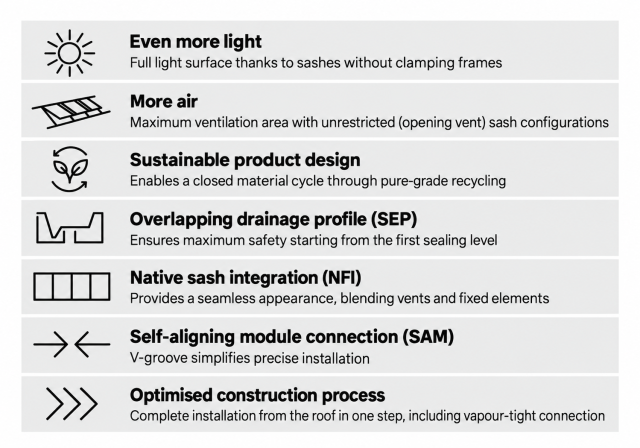

Benefits at a glance

Design

  • Uniform appearance of vents and fixed elements through native vent integration (NFI)
  • Reduced design in the interior area due to vents with invisible, integrated drives
  • Sustainable product material cycle through single-origin recycling

Daylight incidence & fresh air supply

  • High proportion of glass due to module sizes up to 1.30m x 3.00m
  • Full light area due to vents without tensioning frame
  • Maximum ventilation area due to unrestricted vent arrangement

Safety

  • Maximum safety from the first sealing level onwards thanks to the butt-covering drainage profile (SEP)
  • Best quality standards due to high degree of prefabrication
  • The overall system offers thermal insulation values significantly above the legal requirements, for lower costs and active energy savings
  • Safety thanks to the long service life of the entire system

Comfort

  • Precise installation thanks to V-groove and self-aligning module connection (SAM)
  • Optimised construction process thanks to complete installation from the roof side in one stage, including vapour-tight connection
  • Simple and secure roof integration thanks to system-specific connection technology
  • Direct installation on load-bearing surfaces made of concrete, steel or wood without additional mounting and levelling profiles



LAMILUX Modular Glass Skylight MS78

Key Features and Benefits

The best of both worlds
Easy installation

Designed for fast, straightforward installation

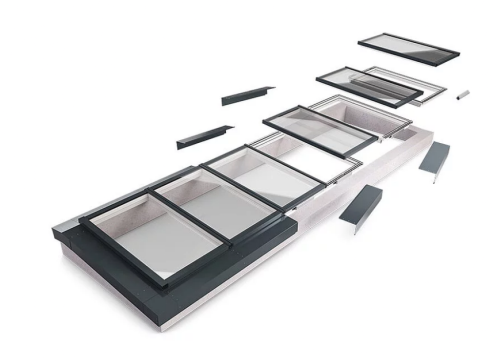

The LAMILUX Modular Glass Skylight MS78 is designed to make installation simple and efficient. Installation always progresses from left to right, following the V-groove coupling system. The modules are also packed in this order, ensuring a smooth workflow on site.

As the roof upstand is waterproofed before the modules are installed, final assembly can be completed in a single day. A team of two can typically install six modules in approximately half a day.

Innovative load converters allow the MS78 to be installed directly onto robust concrete, timber or steel substrates without additional profiles. The system creates a stable, secure connection while accommodating tolerances in the supporting structure. This saves installation time and costs while offering greater flexibility in the choice of substrate.



Different size

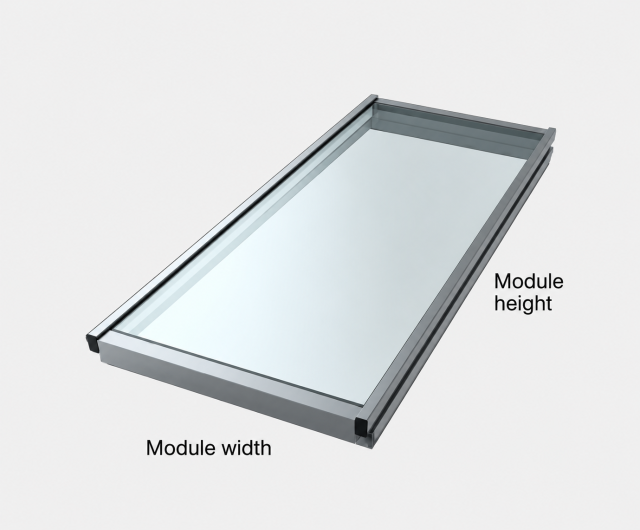

Dimensions

The complete system is currently available in lengths of up to 20 metres and heights of up to 3 metres.

Module Width (in m)

  • 0.675
  • 0.75
  • 0.80
  • 0.90
  • 1.00
  • 1.10
  • 1.20
  • 1.30

Module Height (in m)

  • 0.60
  • 0.80
  • 1.00
  • 1.20
  • 1.40
  • 1.60
  • 1.80
  • 2.00
  • 2,20
  • 2.40
  • 2.60
  • 2.80
  • 3.00





Blinds when needed

Internal roller blinds

The LAMILUX Modular Glass Skylight MS78 can be fitted with an optional internal roller blind for enhanced privacy, solar shading and glare protection. Its sleek, discreet design blends seamlessly into the skylight.

Guided by slim wires, the blind leaves the glazed area largely unobstructed when fully retracted, allowing natural light to enter. When lowered, it helps reduce solar heat gain and glare from direct sunlight, creating a more comfortable indoor environment.

Available in the following colours:

  • White
  • Light Grey
  • Slate Grey
