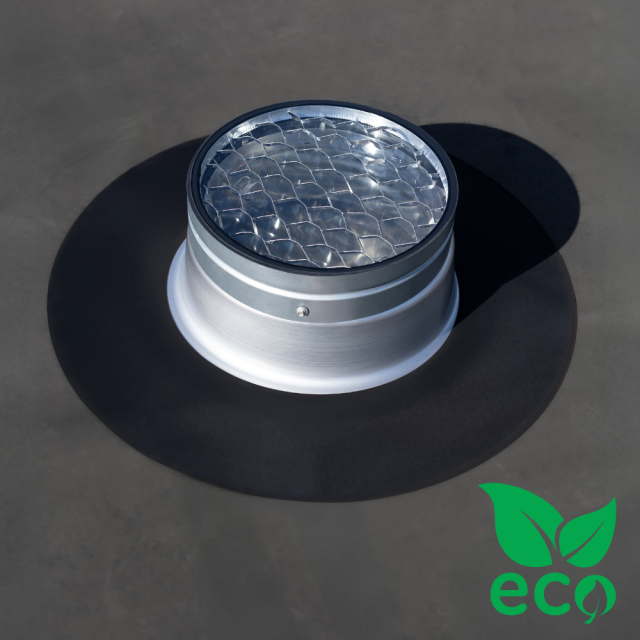

Extra insulated daylight tube
The Powerdaylight ECO extra insulated daylight tube is one of the most energy-efficient daylight tubes in the range. The Eco version improves both the thermal and acoustic properties of the daylight system. As a result, this version is also suitable for passive construction.
Product benefits
Benefits in your space:
- Low maintenance;
- No view from the outside;
- Aesthetically pleasing;
- Good sound insulation;
- Large light output with relatively small diameter;
- Provides diffused daylight by means of a ceiling diffuser of your choice;
- Unique thermal and acoustic properties
- Suitable for Passive Building
- Polycarbonate dome (Standard) or flat glass daylight collector (Cradle)
Questions? Contact Steve
E-Mail: sbrennan@techcomlight.co.uk
Modular system
With an innovative dome ring, the entire Eco system can now be mounted on the roof with just three screws. This is a significant improvement over the traditional method, which required separate installation of the reflector, dome, and dome screws. This new approach not only speeds up the installation process but also reduces dependency on weather conditions, making rooftop work faster and more efficient.
Advantages during quick and easy installation:
- Manual lifting is still allowed and possible due to low weight;
- Little to no structural modifications to the roof structure;
- Complete system, from the roof flashing to the interior finishing;
- Round openings can easily be made in existing constructions such as concrete;
- Interior finishing immediately ensures a complete finish, without carpentry or painting.
Frequently asked questions
View the most frequently asked questions below. If your question is not listed, please contact us.
- What are the advantages of the Powerdaylight Eco, compared to the standard Powerdaylight (Solatube)?
The Powerdaylight ECO offers better thermal insulation and better sound insulation compared to the standard Powerdaylight (Solatube).
- What are the standard sizes of the Powerdaylight Eco?
The Powerdaylight ECO is available in Ø 25 cm, Ø 35 cm, and Ø 53 cm.
The Powerdaylight Cradle ECO version is only available in Ø 35 cm and Ø 53 cm.- Which internal finishes (ceiling diffusers) can be used with the Powerdaylight Eco?
Just like the other variants, you can choose between round or square finishes. All ceiling diffusers are compatible with the standard, ECO, and Cradle versions.
- What are the thermal insulation values of the Powerdaylight Eco?
- Ø 25 cm Eco: U = 0.5 W/m²K
- Ø 35 cm Eco: U = 0.7 W/m²K
- Ø 35 cm Cradle Eco: U = 0.74 W/m²K
- Ø 53 cm Cradle Eco: U = 0.74 W/m²K
All tests have been conducted by a certified body, and the results are available for review. Test method: French Règles Th‐Bât, Fascicule 3/5, § 2.2.7 or hotbox
- What are the sound insulation values of the Powerdaylight Eco?
- Ø 25 cm Eco: 67 dB
- Ø 35 cm Eco: 66 dB
- Ø 35 cm Cradle Eco: 30 dB
- Ø 53 cm Cradle Eco: 30 dB
All tests have been conducted by a certified body, and the results are available for review. Test method: Airborne sound insulation (EN ISO 717-1)
- What is the disadvantage of the Powerdaylight Eco, compared to the standard Powerdaylight (Solatube)?
Compared to the standard version, the ECO provides on average 30% less light due to the additional lenses.
This results in the following light transmittance (LTA value) for the Eco Version:
- Ø 25 cm Eco: 46 %
- Ø 35 cm Eco: 46 %
- Ø 35 cm Cradle Eco: 65 % Summer / 46 % Winter
- Ø 53 cm Cradle Eco: 65 % Summer / 46 % Winter
- Where can I find all the data for Powerdaylight Eco
You can find installation instructions, product drawings, information, and specifications on our webshop at shop.techcomlight.co.uk. On the product pages, you'll find additional information and downloads. If you can't find what you're looking for, you can always contact us.
- Installation of the Powerdaylight ECO?
We provide digital installation instructions, allowing any local contractor to install the system. If you can't find a local contractor, please contact us. We often have local installers available in your area, and Techcomlight can also arrange the installation if needed.
- What are the G-values (solar energy transmittance) of the Powerdaylight Eco?
- Ø 25 cm Eco: 0,61
- Ø 35 cm Eco: 0.62
- Ø 25 cm Cradle Eco: 0,62
- Ø 35 cm Cradle Eco: 0.62
- Ø 53 cm Cradle Eco: 0.62
All tests have been conducted by a certified body, and the results are available for review.
- Does the Powerdaylight ECO have any certifications or quality marks?
Yes, the Powerdaylight ECO has received certifications from independent organisations worldwide:
- CE mark
- BBA Approval
- FM Approved
- Solar Impulse
- Energy Star
- Cradle to Cradle
Available in walk-over and drive-over versions
The Powerdaylight Cradle (Eco) is available in both walk-over and drive-over versions, ensuring seamless integration into various applications. Designed for durability and high performance, it can withstand pedestrian traffic as well as vehicle loads, making it ideal for both commercial and residential environments. This innovative daylight solution provides natural light while maintaining strength and reliability, offering a sustainable and efficient lighting option for any project.
More information
Popular products
Brand Powerdaylight ECO
The Powerdaylight ECO was developed in response to the market's demand for enhanced thermal and acoustic insulation. Leveraging the knowledge gained from tests on the standard Solatube daylight system, conducted by TNO and Peutz, the product underwent further refinement. Collaborating with suppliers and Stichting PassiefBouwen, a partner organisation in the Netherlands focused on passive building solutions, Techcomlight initiated the development of a new line of daylight tubes.
At its core, the Powerdaylight ECO is an evolved version of the Solatube daylight system. Techcomlight, which has been the distributor of Solatube products for over 25 years, integrated new features to meet higher insulation standards. The Powerdaylight ECO is now sold globally under its own brand name, emphasising its eco-friendly and performance-enhancing qualities.
Contact us
Techcomlight: Sponsor of "foundation Passiv building Netherlands"
Techcomlight is proud to be a sponsor of foundation Passivbuilding Netherlands. Through this partnership, we actively support and drive the development of the most energy-efficient building concept on the market.
As a leading provider of innovative daylight solutions, we are committed to sustainability and energy efficiency. By supporting foundation Passivbuilding Netherlands, we help push the construction industry forward in the transition towards fully passive and energy-efficient buildings.
Together, we set the standard for the future of sustainable building!
