Lamilux Industrial Skylight F100

Rectangular or Round

Rectangular

The new standard for the industrial flat roof.
High level of stability under heavy loads. Reliable solution for all extreme weather conditions. Optimum thermal insulation with a U-value of up to 1.3 W/(m²K). Can be combined with smoke and heat exhaust ventilation units (pneumatic and electric). Greater safety on the roof thanks to 7 different fall-through protection grid variants. Available in over 50 sizes.

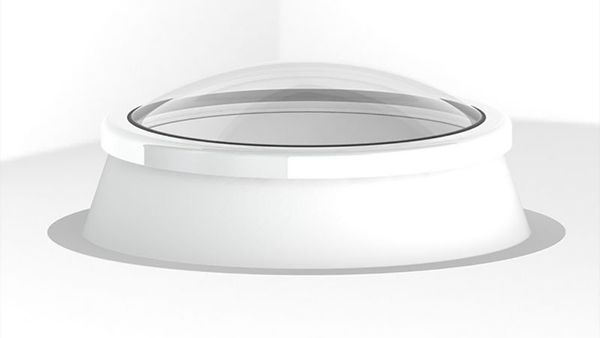

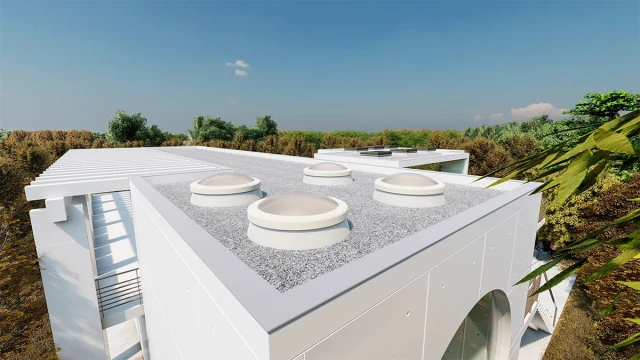

Round

Design highlight for the industrial flat roof.
Promotion of a healthy indoor climate and pleasant working atmosphere. Achieves thermal insulation values of up to 1.3 W/(m²K). Electrical ventilation options. Can be combined with lasered fall-through protection grid for greater safety on your roof. Available in 7 sizes and with 3 different opening variants

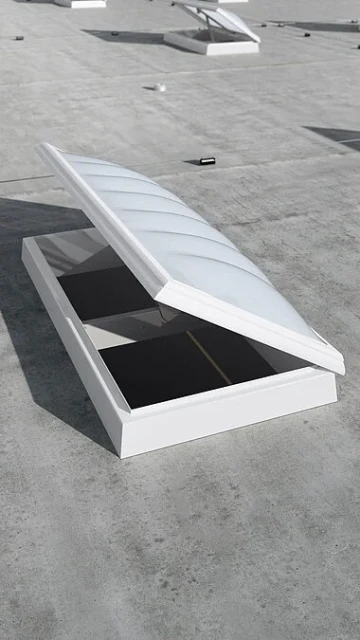

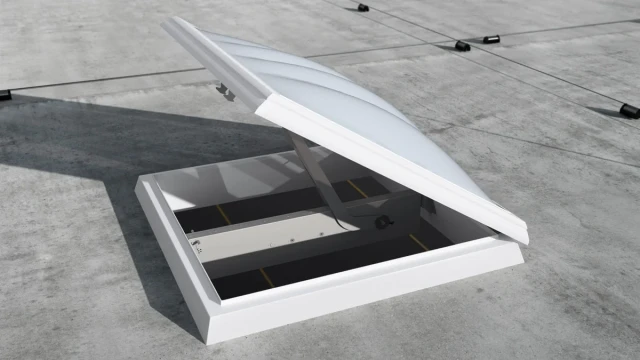

LAMILUX Rooflight F100 W

Design highlight for the industrial roof

The LAMILUX Rooflight F100 W is a durable and versatile skylight for industrial flat roofs. Its wave-shaped dome provides greater stability and helps the rooflight withstand strong wind, heavy rain, hail and high snow loads without adding extra weight. The thermal-bridge-free construction and fully insulated GRP upstand support good energy efficiency and help reduce the risk of condensation. [KH1] Delivered fully pre-assembled and available in more than 50 sizes, the Rooflight F100 W can be easily adapted to different roof constructions and project requirements. It is available as a fixed or ventilated unit, as a roof access hatch or as a smoke and heat exhaust system. Optional sun protection, insect protection and fall-through protection add further comfort and safety, making it a reliable solution for bringing natural daylight and fresh air into industrial buildings.

Stability

• Greater stability under extreme loads due to geometrically optimised design
• High resistance to wind load (≥ UL 1780) and snow load (≥ DL 3000) according to DIN EN 1873
• Certified watertightness in heavy rain and during storms
• Tested Driven Rain Index (DRI) up to 14.7 m²/s, i.e. approx. 8 l of rain per minute and m² in a 115 km/h hurricane
• Certified hail resistance according to the VKF test regulations – up to the highest resistance class HW 5, depending on the glazing

Energy efficiency

• Fulfilment of all requirements of the current Energy Performance of Buildings Directive (EnEV) and the German Building Energy Act 2020 (GEG)
• Fully insulated GRP upstand with a U-value of 0.95 W/m²K
• Perfect thermal connection (e.g. a thermal insulated base flange)
• Design completely free of thermal bridges for optimum U-values and reduced risk of condensation
• Excellent life cycle assessment due to comprehensive Environmental Product Declaration (EPD) according to DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and EN ISO 14025

Comfort

• Quick and easy installation thanks to pre-assembled delivery of the skylight
• Safe and easy installation within a variety of roof types and roof sealing systems
• Optional: Aluminium and steel sheet upstands
• Self-cleaning geometry

Safety

• Fall-through protection during installation for certain glazing types, valid for 1 year after manufacture for certain glazing types
• Preventive fire protection: Compliance with DIN 18234 for the prevention of fire spread on rooftops without the requirement for additional measures
• Available as Smoke Lift F100 W which fulfils the requirements of EN 12101-2 for smoke and heat exhaust ventilation units
